Fleet (Dynamic)

55t all-terrain crane hire across Sydney

If you need capable equipment to navigate tough terrain, you can’t go wrong by choosing our 55t crane hire option. For a small area with rocky ground, you need a small all terrain crane like ours! We supply 55t mobile cranes with the great reach and manoeuvrability your project needs. Hire our 55t all-terrain crane for your city project today!

Get a FREE quote

Why choose our 55t All-terrain crane?

The 55t Liebherr LTM is our most popular all-terrain crane because of its high clearance and outstanding load capabilities for full and half outrigger settings. The 55t mobile crane offers three-wheel axels, hydro-pneumatic independent suspension, and all-wheel steering system allow the crane to access even the most restricted off-road sites. Once there, this 55t all-terrain crane can set up quickly and in a confined space if needed and reach up to 58m with the fly.

Liebherr LTM 1055-3.2 Technical specifications

  • Specifications

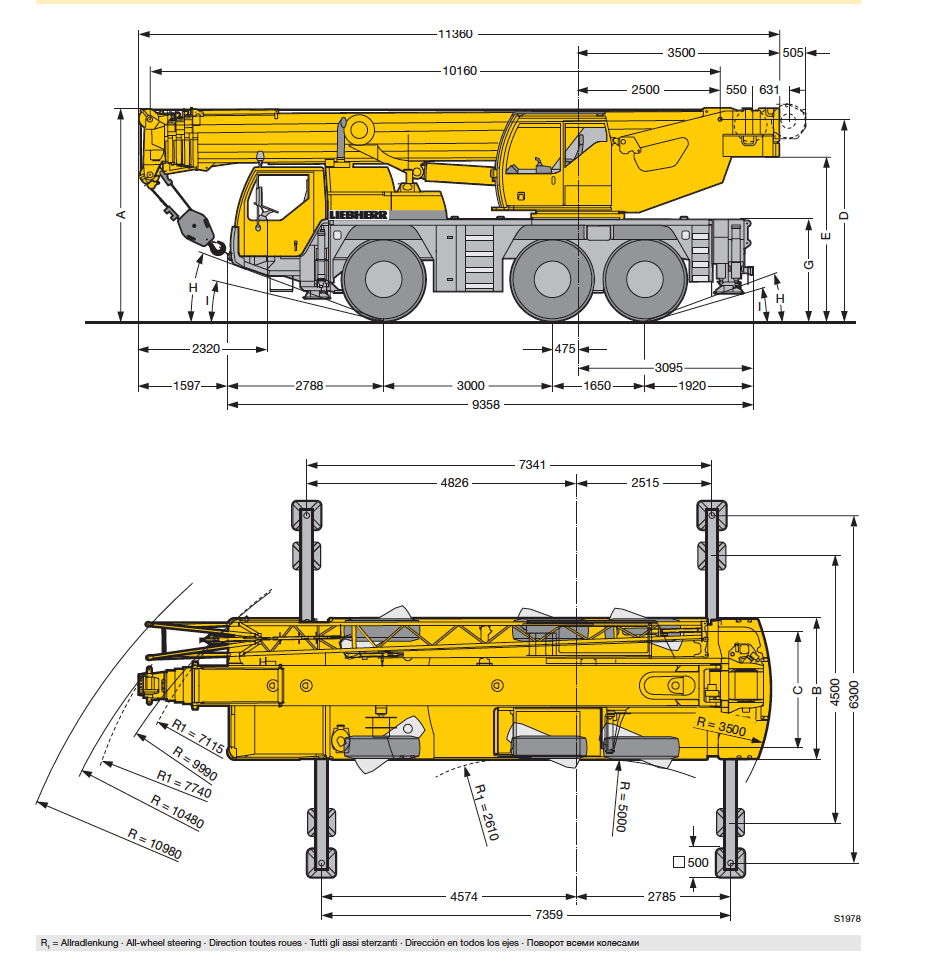

    • Dimensions [LxWxH]: 11.4x2.82x3.70m
    • Maximum working speed: 80km/h
    • Engine output: 270kW
    • Engine maximum torque: 1965Nm
    • Maximum lift: 55t
    • Main boom: 40m
    • Double swing-away jib: 16m
    • Minimum turning radius: 7.58m

  • Options

    • Additional 5t counterweight
    • Spare tyres
    • 2nd Hoist gear

  • Features

    • Single-cylinder telescoping system TELEMATIK
    • Liebherr-designed and -manufactured frame with high-tensile fine structural steel
    • 4-Point supporting hydraulically telescopable outrigging system
    • 6-Cylinder diesel water-cooled engine
    • Lumbar support in crane operator’s seat
    • Self-centring joysticks and armrest-integrated control elements
    • Axial piston fixed displacement motor
    • Differential ram with pilot-operated brake valve
    • Spring-loaded static brake
    • Skylight with bulletproof glass
    • Test system for servicing
    • 7t counterweight
    • 2-Stage transfer gearbox
    • ABV Automatic blocking preventer with ASR anti-slip control
    • Electronic levelling display
    • 4 Integrated floodlights
    • Fully automatic telescoping
Download specifications

Get rates

Our 55t mobile crane is the premier choice when it comes to operating quality equipment in rugged and small spaces. Reach out to hire today!
