Fleet (Dynamic)

16t crane hire across Sydney

For tight access building sites in Sydney and Wollongong, our 16t crane offers optimal sizing and power. For city construction jobs, you can’t go wrong with 16t crane hire! With high reach and manoeuvrability it’s the perfect choice for completing all manner of urban projects. Hire our Tadano GR-160N 16t crane today.

Get a FREE quote

Why choose our 16t Mobile slewing crane?

Our 16t mobile crane is one of our most popular crane hire options, thanks to its high manoeuvrability, compact size, and high-reach capability. The 16t crane’s design balances this versatility with its long reach as opposed to heavier weights, which must be kept closer to the crane. The GR-160N has a quick set-up time, making it easy to operate especially on sites with little room. This 16t mobile crane can effectively steer clear from hazardous areas such as places with overhead wires, making it the go-to crane for the city.

Tadano GR-160N Technical specifications

  • Specifications

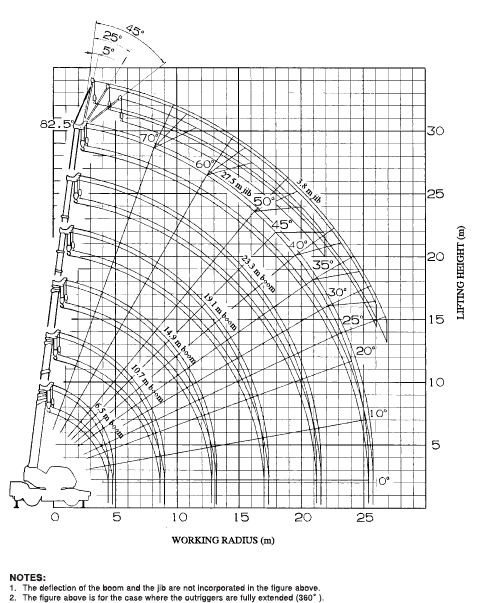

    • Maximum boom height: 28.2m
    • Jib height: 32m
    • Maximum boom working radius: 24m
    • Maximum jib working radius: 27.2m
    • Boom extension: 21m
    • Jib length: 3.8m
    • Hydraulic oil tank capacity: 295L
    • Dimensions [LxWxH]: 8.23x2.4x3.2m
    • Gross vehicle weight: 20,000kg
    • Maximum travelling speed: 49km/h

  • Options

    • AML External warning lamp
    • Loudspeaker

  • Features

    • 6-Section hydraulically telescoping boom of box construction
    • Boom comes with 2 double-acting hydraulic cylinders
    • 3 Wire rope telescoping devices
    • Flow regulator valve with pressure compensation
    • Hoist comes with Hydraulic motor-driven planetary gear reducer
    • 2 Single winches; and Automatic brake
    • Swing bearing
    • Swing free/lock changeover type
    • Swing comes with negative brake
    • PTO Wet multi-plate clutch
    • 2 Variable piston pumps
    • 2 Gear pumps
    • Automatic movement limiter [AML]
    • Outrigger extension width detector
    • Swing range controller
    • Swing automatic stop device
    • Boom elevation slow down and stop device
    • Over-winding cutout device
    • Level gauge
    • Hook safety latch
    • Swing lock
    • Hydraulic safety valve
    • Hydraulic lock
    • Air conditioner and dehumidifier
    • Hydraulic oil temperature indication lamp
    • Radio
    • Oil cooler
    • Visual-type winch drum rotation indicator
    • Operation pedals
Download specifications

Get rates

Our 16t crane hire packages will provide you with outstanding reach and access when you need it most! Hire through us today.
