20t Franna crane hire across Sydney

If you need a compact and powerful crane for building sites in Sydney and Wollongong, our manoeuvrable 20t Franna crane is your guaranteed machine of choice. The team at Action Cranes supplies strong 20t cranes for hire, with easy operation and steering flexibility to complete your project. Hire our Terex AT-20 20t mobile crane today.

Get a FREE quote

Why choose our 20t Franna crane?

The 20t Franna crane is one of our first choice hire options, and for good reason! The Terex AT-20 has the power, finesse, and versatility to lift almost anything anywhere. It’s best for working inside buildings and relocating materials around large sites. Operators can easily lift heavy loads and transport them in tight spaces in or outside of buildings with our 20t mobile crane. The 20t Franna crane can get to the jobsite quickly with high transport speeds, and with minimal setup can be up and running in next to no time. Its articulated frame doesn’t require any outriggers to help. Whether you need materials on the fourth floor of your building site or transferred from one end to the other, the 20t mobile crane is the crane for you.

Terex AT-20 Technical specifications

  • Specifications

    • Dimensions [LxWxH]: 9.76x2.50x3.07m

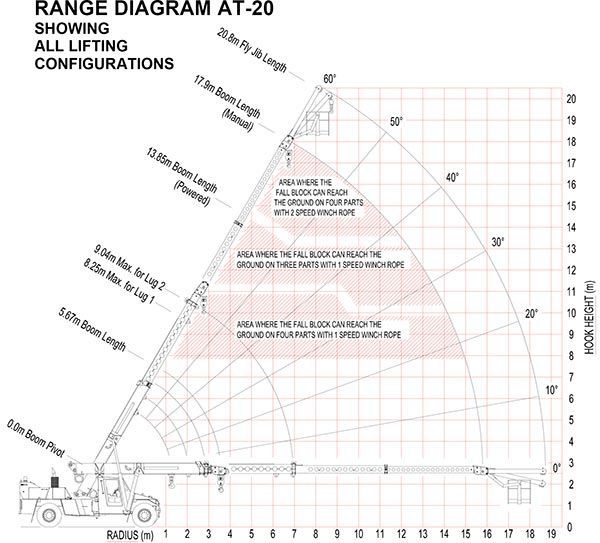

    • Maximum extension length: 17.9m including manual 3rd extension
    • Maximum hook height: 17m
    • Maximum hook height with jib: 20m
    • Maximum winch line pull: 4.2 tonnes
    • Engine capacity: 205kW
    • Fuel capacity: 440L
    • Fuel type: diesel
    • Maximum rated travel speed: 85km/h
    • Maximum lift: 20t
    • Main boom: 13.85m

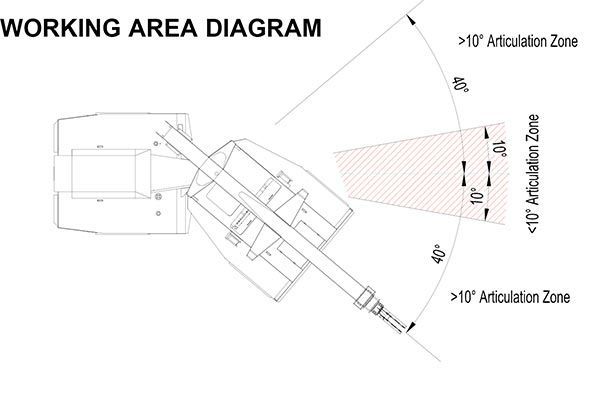

    • Total slewing arc: 80 degrees

  • Options

    • Single-part hook block
    • Two/ three-part hook block
    • Four-part hook block
    • 20t Hook
    • 15t Spreader bar

  • Features

    • Air operated high capacity brakes
    • Spring-applied park brakes on both front and rear axles
    • Driver selectable engine exhaust brake available in all gears
    • Two semi elliptic springs on front and rear axle
    • Torsion bar on front axle for stability
    • KAB Suspension on driver’s and passenger’s seats
    • Retracting seat belts
    • Colour LCD display
    • Radio/CD player with Bluetooth handsfree
    • Reversing camera
    • Centralised greasing
    • Cruise control
    • Engine monitoring
    • Service diagnostics
    • 3B6 Rated capacity indicator with audio/visual overload pre-warning
    • 3-Axis joystick control for crane functions
    • Air conditioning and heating
    • Easy access to main hydraulics, pilot hydraulics and service points

Get rates

Choosing our 20t Franna crane for hire means choosing compact access, power, and quality results. Call us now!
