100t crane hire in Sydney

If your Sydney-based project requires equipment that can negotiate small areas and difficult terrain, our all-terrain 100t crane will provide you with the adaptable approach you’ll need. We supply 100t mobile cranes with high reach, lifting capacity, and manoeuvrability, perfect for your worksite. Hire our Grove GMK 4100L-1 100t crane today.

Get a FREE quote

Why choose our 100t All-terrain crane?

Our 100t mobile crane is the latest addition to our fleet and includes all the cutting-edge options you’ll love. It offers a 100t maximum capacity combined with a 52m TWIN-LOCK boom that offers our customer exceptional capabilities and options, such as 0%, 25%, 50%, 75% and 100% outrigger settings, perfect for compact Sydney sites. As the most compact 4-axle 100t crane in the world, it also features the latest ergonomically optimised GMK chassis cab with fully independent suspension, making even the rockiest sites no match for this 100t crane.

Grove GMK 4100L-1 Technical specifications

  • Specifications

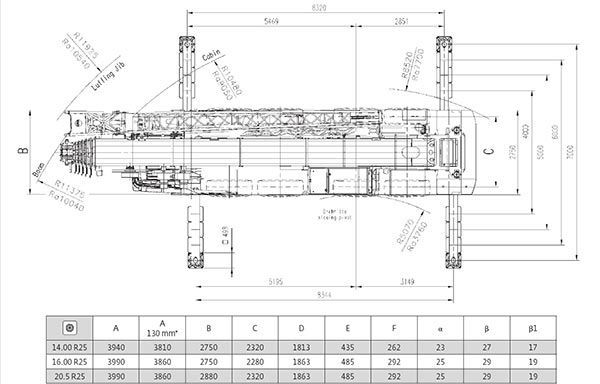

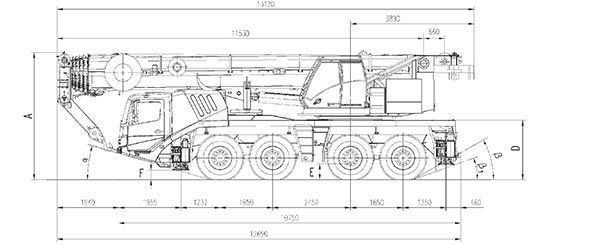

    • Dimensions [LxWxH]: 2.75x13.18x3.94m
    • Weight capacity: 100t

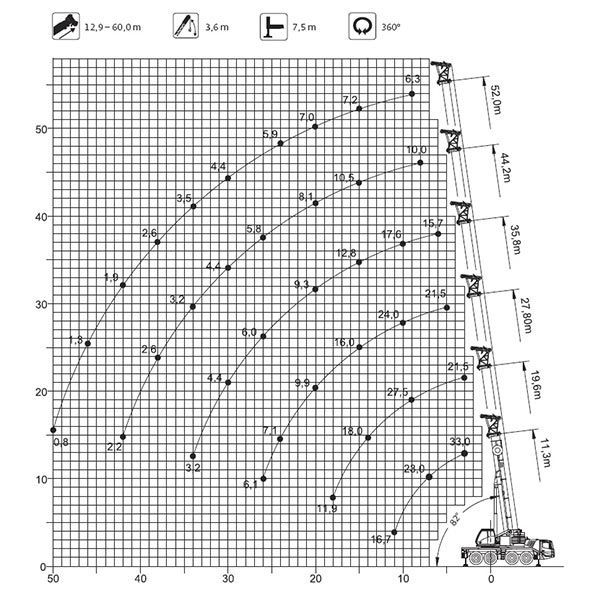

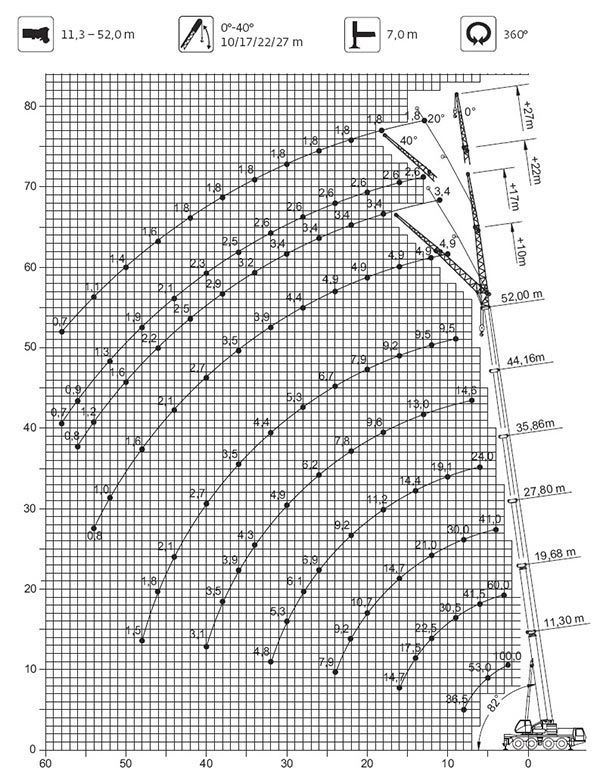

    • Main boom maximum height: 52m
    • Jib maximum height: 27m
    • Maximum tip height: 82m
    • Engine capacity: 320kW
    • Maximum engine torque: 2100Nm
    • Axel lines: 4
    • Tyres: 8

  • Options

    • Counterweight between 4.1t and 26.1t
    • Telescopic swingaway with hydraulic offset and luffing under load
    • Auxiliary hoist
    • Auxiliary boom nose using two parts of line

  • Features

    • EUROMOT 4/ Tier 4 final engine reduces fuel consumption
    • Eco-mode
    • Independent anti-two block system with audio-visual warning
    • Graphic display of boom angle, length, radius, tip height, relative load moment, etc.
    • Aluminium tiltable cab with full vision, safety glass and adjustable operator seat
    • Armrest-integrated crane controls
    • 2 Slewing gears with axial piston motors, planetary gears and automatic brake
    • 2 Separate hydraulic system circuits
    • Axial piston variable displacement pump for slewing
    • Thermostatically controlled oil cooler
    • Electrical control levers with automatic rest to zero
    • RCL and engine management system by CAN-BUS
    • Crane Control System [CCS] with graphic display
    • Drum rotation indicator
    • Hoist camera with light
    • 4-Axel chassis
    • 4 Double hydraulically telescoping beams with vertical cylinders and outrigger pads
    • Independent horizontal and vertical movement control on each side of the carrier
    • Electronic level indicator with automatic levelling system
    • Mercedes Benz 6-cylinder water-cooled turbo-charged diesel engine
    • Hydropneumatic suspension and hydraulic lookout on all wheels
    • Dual-circuit, hydraulic power assisted steering with emergency steering pump
    • Pneumatic dual circuit disc service brakes on all wheels
    • Pneumatically operated spring-loaded parking brake on all axel lines
    • 2-Person cab with safety glass, pneumatic suspension in driver’s seat
    • Engine-independent diesel air heater including 24h timer
    • Complete instrumentation and driving controls
    • Air conditioning
    • Fire extinguisher

Get rates

Hire the most compact 4-axle 100t mobile crane in the world.
