25t Franna crane hire across Sydney

We supply a range of cost-effective 25t crane hire options, with easy operation and steering flexibility for your site’s needs. Sydney and Wollongong work sites need more material delivered to hard-to-reach spaces faster than ever. Our 25t mobile crane, the Terex MAC25 Franna crane, is extremely capable in urban and built-up environments. Hire a capable 25t Franna crane through Action Cranes today.

Get a FREE quote

Why choose our 25t Franna crane?

Our 25t crane hire option available is perfect for picking equipment and machinery off the back of trucks and placing them where you require. Our customers hire the 25t Franna crane for these types of tasks due to its flexibility, manoeuvrability, and capability when performing heavy lifts. The removable counterweight attached to the MAC25 dramatically increases its lifting capacity. Once the crane operator and dogman get to your site, you can start those heavy lifts immediately – there is no lengthy set up time required. Therefore, the 25t mobile crane can relocate heavy and large loads when you need them to, with no hassle on your part.

Terex MAC25  Technical specifications

  • Specifications

    • Maximum rated capacity:25t
    • Dimensions [LxWxH]: 9.99x2.72x3.08m

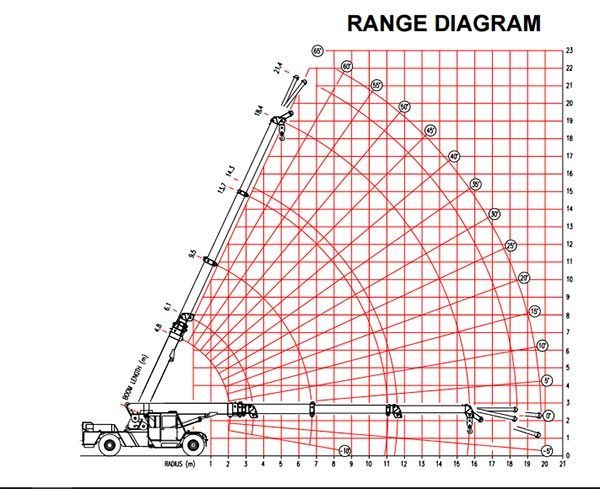

    • Maximum hook height: 18m
    • Maximum hook height with jib: 22m
    • Maximum line pull: 4.2t
    • Engine capacity: 205kW
    • Fuel capacity: 440L
    • Fuel type: diesel
    • Maximum pump flow rate: 150L/min
    • Maximum working pressure: 250 bar
    • Maximum rated travel speed: 75km/h

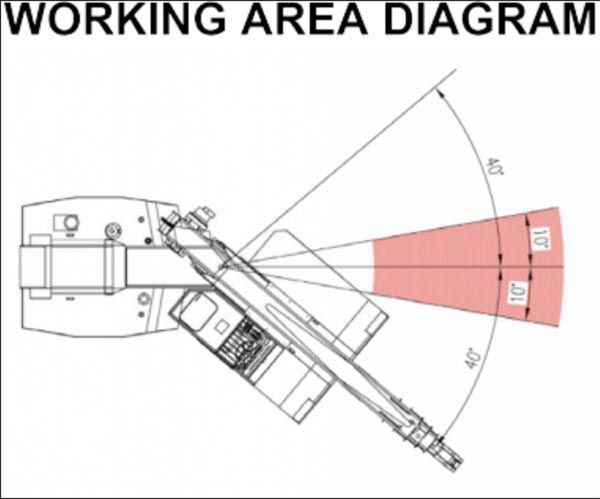

    • Total slewing arc: 80 degrees
    • Turning circle: 7.9m
    • Gradability: 45%
    • Number of axels: 2
    • Wheel track: 2.72m

  • Options

    • Removable 1500kg counterweight
    • Four-part fall block
    • Six-part fall block
    • Single-part hook block
    • Rhino hook
    • 15t Spreader bar

  • Features

    • Four-section boom
    • Load-sensing axel piston
    • Hydraulic tank with top mounted return and in-tank suction filters
    • Kessler D71 PL477 heavy duty high speed planetary axle
    • Front axle fitted with driver selectable diff lock
    • Full power Orbitrol with twin hydraulic double-acting rams
    • Electro-hydraulic emergency supply
    • Air-operated high-capacity brakes
    • Spring-applied park brakes on front and rear axels
    • Driver-selectable engine exhaust brake available in all gears
    • Two semi-elliptic springs on front and rear axle
    • KAB Suspension in driver and passenger seats
    • Retractable seat belts
    • Colour LCD display
    • Radio/ CD player with Bluetooth handsfree
    • Reversing camera
    • Centralised greasing
    • Cruise control
    • Engine monitoring
    • Service diagnostics
    • 3 Pilot control levers for crane functions
    • Air conditioning and heating
    • Spacious interior
    • Binnacle-type dashboard
    • Pilot-operated hydraulics
    • Digital load indicator
    • 6-Cylinder turbo-charged and cooled engine
    • 32mm-Thick steel front plate with fully recessed dual headlights and blinkers
    • Upswept exhaust/ chrome muffler
    • Large tinted front windscreen
    • Full power orbital steering/ DC emergency steering
    • Heavy-duty front and rear bodies with fully-incorporated checker plate mudguards

Get rates

Our 25t crane hire will provide your jobsite with unwavering power and access!
